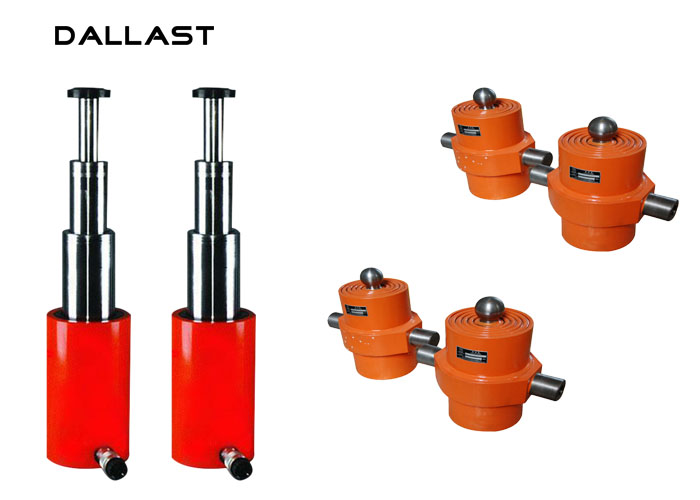

Tipper Power Unit And Telescopic Multi Stage Hydraulic Ram ISO9001 Certification
| Product name | Tipping trailer used hydraulic cylinder and hydraulic power unit |
| Lifting capacity | 1.5, 3, 5 and 10 tons |
| Stroke | 500, 800, 1000, 1200mm |
| Hydraulic power unit | 12-24V DC, 1.6kW, 2.1cc/r, 15MPa working pressure |
| Electric solenoid valve | Yes |
| Control switch | 4 meters length control with up/down button |
Key Specifications/Special Features:
HCIC designs, manufactures and distributes a complete range of under, body cylinders with all the necessary cradles and supports for tractors and semi
Trailers with rear, side or 3-way tipper agriculture trailers, single or double cylinders, cradles and supports
Seals used are highly-resistant to permanent deformation and wear with working temperature from -40 to +110°C
| Model | Stage | Rated pressure | Bore diameter | Installation distance | Stroke |
| (MPa) | (mm) | (mm) | (mm) |
| 4TG-E180*800 | 4 | 16 | 180 | 140 | 800 |
| 4TG-E160*800 | 4 | 16 | 160 | 140 | 800 |
| 4TG-E150*830 | 4 | 16 | 150 | 160 | 830 |
| 4TG-E140*800 | 4 | 16 | 140 | 140 | 800 |
| 4TG-E140*730 | 4 | 16 | 140 | 140 | 730 |
| 4TG-E135*800 | 4 | 16 | 135 | 140 | 800 |
| 4TG-E135*730 | 4 | 16 | 135 | 140 | 730 |
| 4TG-E130*750 | 4 | 16 | 130 | 110 | 750 |
| 4TG-E110*1360 | 4 | 16 | 110 | 140 | 1360 |
| 3TG-E110*1530 | 3 | 16 | 110 | 140 | 1530 |
| 3TG-E110*1350 | 3 | 16 | 110 | 140 | 1350 |
| 3TG-E110*1020 | 3 | 16 | 110 | 140 | 1020 |
| 3TG-E110*900 | 3 | 16 | 110 | 260 | 900 |
| 3TG-E90*1155 | 3 | 16 | 90 | 140 | 1155 |
| 3TG-E90*1020 | 3 | 16 | 90 | 140 | 1020 |
| 3TG-E90*900 | 3 | 16 | 90 | 260 | 900 |
| 3TG-E90*750 | 3 | 16 | 90 | 140 | 750 |
| 2TG-E90*900 | 2 | 16 | 90 | 140 | 900 |
| 2TG-E90*600 | 2 | 16 | 90 | 260 | 600 |
| 2TG-E90*500 | 2 | 16 | 90 | 260 | 500 |
1. Our main products:
Front - end multistage hydraulic cylinder
(FC/FE/FEE, used for dump truck)
Under - body hoist multistage hydraulic cylinder
(bore size from 70-110mm, stroke from 500-2000mm)
Engineering piston hydraulic cylinder
(Used for trailer, modified vehicle, construction machinery, forklift and agricultural machinery)
2. How do we produce hydraulic cylinder?
Raw material purchasing
Rough finish
Fine finishing
Surface treatment
Assembly work
Testing
Packing delivery
3. What are our strengths?
We have all the equipment to produce hydraulic cylinders.
We provide design services according to your requirements.
We can supply metric and imperial size cylinder.
Use imported seals as required.
We own our own electroplating factory.
Complete quality control system.
ST52,16Mn,45#,20# tube
Chrome plated thickness >30 micron
Single/double acting
3~5 stages cylinder
Working Pressure: 16~22Mpa or more high pressure
Various mounting type
Easy installation
High quality guarantee
Low friction seals
Constant speed and force
